2 Circuit Thermostat Controller
2 Circuit Thermostat Controller
Couldn't load pickup availability

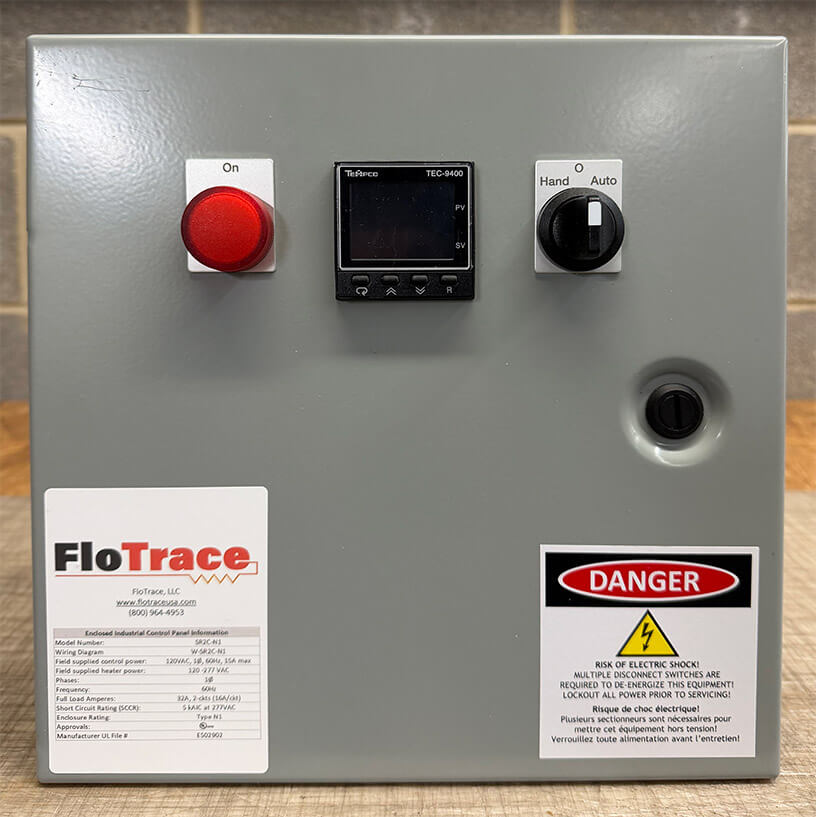

FloTraceUSA UL-Listed Heat Trace Control Panel is designed to operate self-regulating heat trace cables from any manufacturer for reliable roof and gutter de-icing, downspout ice prevention, and pipe freeze protection.
Smart automation uses temperature and moisture sensors with an optional astronomical timer to activate heating only when needed—maximizing efficiency and reducing energy costs. Fully adjustable set points allow easy customization for local weather and seasonal conditions.
A built-in Low Temperature Cutout feature improves energy savings by shutting off the system during extreme cold when melting is ineffective, then automatically restoring operation as temperatures rise. This feature can be disabled for continuous pipe freeze protection.
Specifications
| Model Number | SR2C-N1 |
| Wiring Diagram | W-SR2C-N1 |
| Field Supplied Control Power | 120VAC, 1 Ø, 60Hz, 15A max |
| Field-Supplied Heater Power | 120-277VAC |
| Phases | 1 Ø |
| Frequency | 60Hz |
| Full Load Amperes |
32A, 2-ckts (16A/ckt) |
| Short Circuit Rating (SCCR) | 5 kAIC at 277VAC |
| Enclosure Rating | Type N1 |
| Manufacturer UL File # | E502902 |
