15 Watt High-Temperature Self-Regulating Heat Trace Cable | 500ft. | 120v or 208v, 240v, 227v

15 Watt High-Temperature Self-Regulating Heat Trace Cable | 500ft. | 120v or 208v, 240v, 227v

$8,425.00
$8,425.00
Sale Sold out
Shipping calculated at checkout.
Voltage

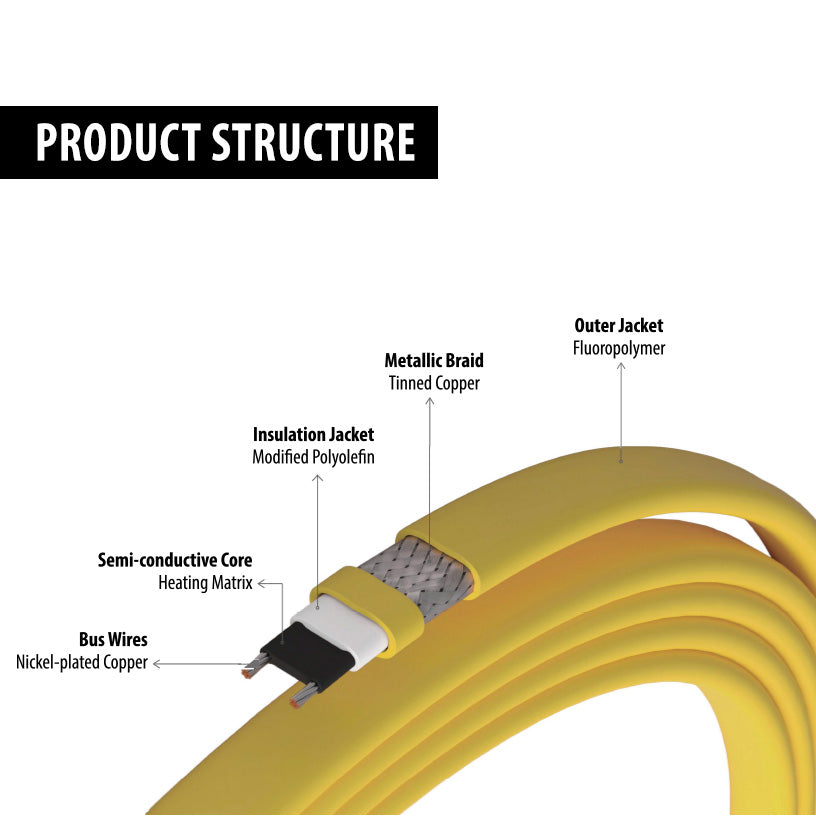

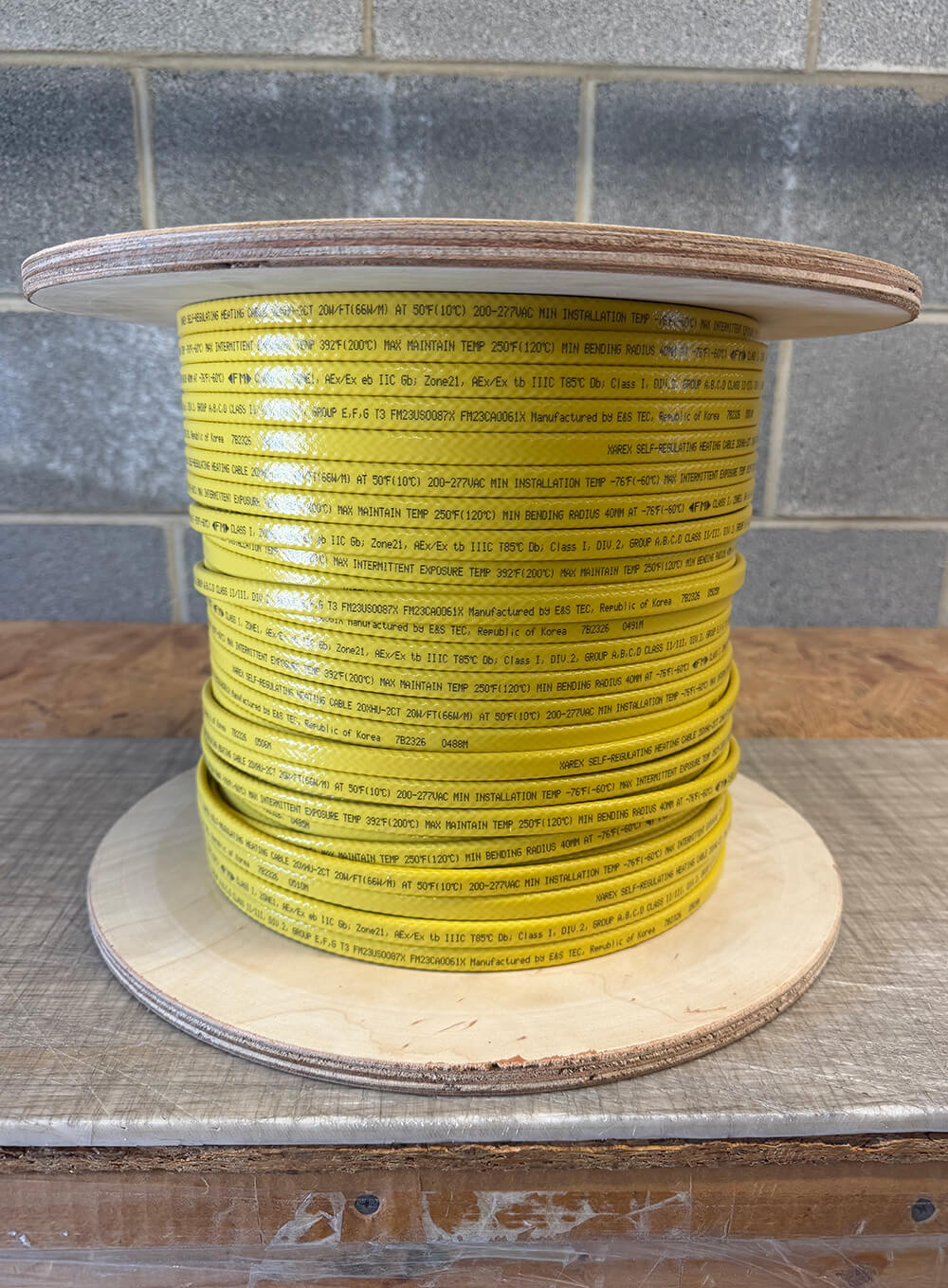

15 Watt high-temperature self-regulating heat trace cable, with a fluoropolymer jacket, available in 120 Volt, or 208, 240, 277 Volts. Provides a flexible, cut-to-length heat trace solution engineered for freeze protection and process maintenance up to 392°F where elevated temperature capability is required. Cut to length in the field. 500 ft. spool, $16.85 per foot. 10-year warranty.

Applications

  • Pipe Freeze Protection
  • Line Temperature Maintenance

Benefits

  • Easy to install and maintain
  • Versatile for many applications
  • Durable and weather-resistant

Specifications

 Maximum Intermittent Exposure Temp. 392°F (200°C)
Maximum Maintain or Continuous Exposure Temp. 250°F (120°C)
Supply Voltage 120 or 208,240,277 VAC
Output Wattage 15, 20 @50°F on pipe
Bus wire gauge 16 AWG
Minimum Bending Radius 1.2" (30mm) @70°F (20°C)
2.0" (50mm) @-40°F (-40°C)
Minimum Installation Temperature

-76°F (-60°C)
Minimum Start-up Temperature -40°F (-40°C)
Maximum Circuit Breaker Size 40A
Outer Jacket Color Yellow
