Is your heat trace cable underperforming? If you’ve purchased high-quality cable, the problem might be with the way it’s installed.
A poorly installed heat trace system will underperform, fail prematurely, or in the worst case, create a safety hazard. For safe, reliable, long-term performance, your heat cable requires attention to a set of best installation practices that will ensure years of performance.
In this article, we’ve compiled the best installation recommendations we’ve gathered over our 30+ years in the roof and gutter de-icing industry. Keep reading to learn how you can get the most out of your heat trace cable.
1. Do Your Prep Work: Verify the Design
Installation begins with verifying that the installation design is complete and correct. Before ordering materials, confirm:
- the maintenance temperature requirement
- minimum design temperature
- cable selection
The most expensive installation mistake is using the wrong cable — either underpowered or more expensive than required. Then follow these steps to ensure a complete design check:
• Walk the complete installation route before pulling any cable.
• Identify all fittings, valves, flanges, and supports that will affect cable routing.
• Note any areas where the cable will need to be secured, transitioned, or protected.
• Count the actual linear footage including all tees, branches, and valve bypasses.

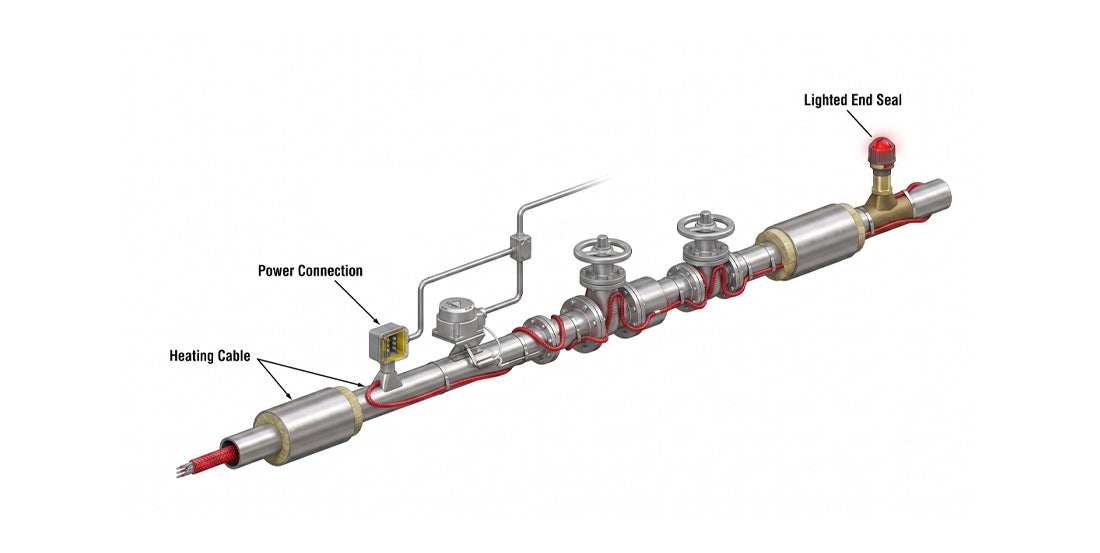

2. Cable Installation on Pipes
As the adage goes, “an ounce of prevention is worth a pound of cure,” and it’s certainly true when applying heat trace to pipes. If you’re installing heat trace cable on pipes, these crucial steps ensure correct installation and performance.
-
Clean the pipe surface: Contamination between cable and pipe reduces thermal contact and can trap moisture. Be sure to remove dirt, rust scale, and loose coatings from the pipe surface before applying cable.
-
Run cable straight on small-diameter pipes: For pipes up to 2 inches, it’s standard to apply a single straight run of cable along the bottom of the pipe is standard. Be sure the cable isn’t floating above the pipe but is making contact.
-
Spiral wrap on larger pipes: Pipes larger than 2 inches in diameter may require spiral wrapping to ensure adequate heat distribution around the pipe circumference. Follow the manufacturer's spiral spacing recommendations for the pipe diameter and wattage
-
Secure cable every 12–18 inches: Use manufacturer-approved cable attachment tape or clips. Do not use metal wire ties that can damage the cable jacket.
-
Run cable on valve bodies and fittings separately: Valves, flanges, and fittings have much more mass than pipes. They need additional cable loops or dedicated valve kits to prevent freeze points at these locations.
- Never staple or nail through the cable: Punching a hole in the cable jacket can allow moisture to infiltrate your cable and cause it to fail.
3. Cable Installation in Gutters and Downspouts
Heat trace cable prevents ice dams and roof damage from the freeze-thaw cycle. Putting in a little effort upfront during installation can save you bigger headaches down the road.
-
Use appropriate gutter clips: clips designed for the gutter material like aluminum, vinyl, or steel, should be spaced at a maximum of 12-inch intervals.
-
Extend beyond the downspout outlet: Your cable should extend at least 12 inches past the bottom of the downspout for proper
-
Thread cable before installing the downspout: It is much easier to thread cable through a downspout lying on the ground than one already mounted to the building.
- Route cable through gutter outlets carefully: Forcing cable through tight bends damages the jacket. Thread your cable through the outlet and into the downspout using a pull string if needed.
4. End Terminations and Splices
End terminations are the most failure-prone component of a heat trace system. This is the point where moisture most commonly finds its way into the system and is the leading cause of cable failure in outdoor installations. Here are the steps you can take to protect your system.
- Use listed end termination kits: Improvised end seals that employ tape and wire nuts don’t cut it. Always use the cable manufacturer's listed end kit for the specific cable type.
- Follow termination instructions exactly: Heat-shrink components must be fully shrunk to the cable jacket because a partially shrunk end kit will admit moisture.
- Use weatherproof power connection kits: All power connections and splices exposed to weather must be rated for outdoor use.
- Label all circuits at the panel: Include cable type, circuit length, breaker rating, and the pipe or area served.
5. Applying Insulation over Heat Trace
- Install insulation after cable: Cable should be installed and tested before insulation is applied because testing after insulation installation requires insulation removal.
- Seal all insulation joints: Open joints in pipe insulation are thermal bridges that dramatically increase heat loss and can create freeze points.
- Use insulation jacketing: Bare insulation exposed to weather absorbs moisture and loses much of its thermal effectiveness within one season.
6. Commissioning and Testing
The most important step you can take in the installation process is testing. Before closing up any installation, perform a complete electrical test. Don’t forget to document all test results and retain them with the installation records.
-
Insulation resistance test: Verify that the cable jacket is not damaged and that no moisture has infiltrated any terminations.
-
Circuit continuity test: Verify that current flows the full length of the circuit.
- Current draw measurement: Use a clamp meter to verify that each circuit is drawing current consistent with the cable length, wattage, and ambient temperature.
- Ground fault check: Verify that the GFCI protection is functioning.
